E bike throttle not working fix: 9 Expert Steps to Power Up Your Ride ⚡

There’s nothing quite as frustrating as hopping on your beloved electric bicycle, ready for a fun commute or an adventurous trail ride, only to find that your e bike throttle not working. That sudden, unwelcome silence where the powerful hum of the motor should be can instantly deflate your plans. Maybe you’re asking yourself, “Why is my electric bike not accelerating?” or “What’s the easiest way to troubleshoot my e bike speed control?”

As an expert in e bike systems, I’m here to tell you that in the vast majority of cases, a non-responsive throttle doesn’t mean you need a costly trip to the service center or an expensive new e bike. It often boils down to a few common, easily diagnosable, and relatively simple problems related to the wiring, the sensor, or the controller. Whether you have a twist throttle or a thumb throttle, the core troubleshooting principles are remarkably similar. We’ll dive deep into the specific components and mechanisms that make your electric bicycle go, focusing entirely on how to achieve that satisfying e bike throttle not working fix.

✨Was this helpful? Spread the word! 🚀

Before we get into the nitty-gritty fixes, let’s quickly look at what we’re dealing with. An electric bike throttle is essentially a simple device, typically Hall effect sensor-based, that tells the e bike controller exactly how much power to send to the motor. No signal from the throttle, no power to the motor. Simple! Understanding this relationship is the first, crucial step toward successfully fixing the problem.

📋 Quick Comparison: Common Throttle Malfunctions vs. Other e bike Issues

While the e bike throttle not working fix is our primary goal, it’s important to rule out other common e bike problems first. Sometimes, what seems like a faulty throttle is actually an issue with a completely different component.

🥇 Top 7 E Bike Throttle & Controller Kits: Expert Analysis for the Best e bike Throttle Not Working Fix

To help you with potential replacements or upgrades, I’ve scoured the market for highly-rated, dependable throttle and controller kits. These products are crucial components when dealing with an e bike throttle not working issue, as they represent the most likely parts needing replacement if troubleshooting fails. They cover a range of voltages and motor types, offering budget, mid-range, and premium solutions.

1. VOYON 48V/36V 350W Brushless DC Motor Controller Kit with LCD Display

This is a versatile, mid-range kit often used for upgrading or repairing standard commuter e bikes. It includes a smart LCD that provides diagnostic error codes, a huge help for any future e bike throttle not working fix situation.

• Detailed Technical Specifications: Supports 36V or 48V batteries (auto-detect); Rated Current: 7A; Maximum Current: 15A; Low Voltage Protection: DC30/40±0.5V; Applicable Motor: 350W Brushless DC motor; Includes KT-LCD3 display.

• Customer Review Analysis: Users frequently praise its easy installation and reliable performance. A common positive note is the “clear wiring diagrams,” which significantly reduces troubleshooting time. Some minor complaints relate to the basic waterproofing of the connections.

• Pros/Cons Analysis:

  • Pros: Dual voltage support, excellent display for error codes, good value for money, robust controller casing.

  • Cons: Basic twist throttle included (not the highest quality), connectors might require splicing for non-standard setups.

• Warranty/Applications: Typically includes a 1-year limited warranty. Best for budget-conscious commuter bike repairs or standard 26-28 inch wheel conversions.

2. EBikeGo 24V-48V 1000W-1500W Controller with SW900 Display

A high-power controller geared towards performance and fat-tire e bikes. When your e bike demands serious juice, this is a heavy-duty option. It’s a great replacement for powerful builds where a non-functioning e bike throttle might be stressing a weaker stock component.

• Detailed Technical Specifications: Supports 24V, 36V, 48V (with external jumpers); Maximum Current: 40A; Rated Wattage: 1000W-1500W; MOSFETs: 15; Includes SW900 LCD/LED combo display and thumb throttle.

• Customer Review Analysis: Highly rated for its “brute force power delivery” and reliability under heavy loads. Reviewers often mention its large physical size and the necessity for good heat management due to the high current capacity.

• Pros/Cons Analysis:

  • Pros: Extremely high power handling (up to 1500W), multiple voltage compatibility, sturdy aluminum heat sink casing.

  • Cons: Overkill for low-wattage bikes, physically large and heavy, requires professional installation for high-power systems.

• Warranty/Applications: Standard 1-year warranty. Ideal for off-road e bikes, cargo bikes, or high-speed custom builds.

3. Hall Effect Twist Throttle Grip by KT/Kunteng for E-Bikes

Focusing purely on the throttle component, this is a very common, high-quality replacement throttle that uses the industry-standard Hall effect sensor. It’s an easy drop-in fix when only the e bike throttle component is faulty.

• Detailed Technical Specifications: Sensor Type: Hall Effect; Cable Length: 180cm; Connector Type: SM 3-Pin connector (standard); Voltage Compatibility: Universal (24V-72V); Features: Battery level indicator LEDs (optional).

• Customer Review Analysis: Praised for its “smooth and precise acceleration curve” and high build quality compared to generic throttles. The main critique is that the grip material wears out faster on bikes ridden daily.

• Pros/Cons Analysis:

  • Pros: Universal voltage, highly accurate sensor, common connector standard (easy replacement).

  • Cons: Grips are not ergonomic for long rides, battery indicator LEDs can be inaccurate.

• Warranty/Applications: 6-month limited warranty. Best for replacing worn-out or broken Hall sensor twist throttles on any e bike system using an SM connector.

4. Bafang DP C18.UART Color Display and Controller Set

This product is a premium option, often used in Bafang mid-drive motor kits, but the controller/display combo can be adapted for hub motors too. Bafang’s reputation for quality makes this a top choice for a reliable e bike throttle not working fix that offers advanced features.

• Detailed Technical Specifications: Communication Protocol: UART; Display: High-resolution full-color DP C18 LCD; Operating Temperature: -20°C to 45°C; Includes USB charging port; Controller: Sine Wave FOC (Field-Oriented Control) for smooth power.

• Customer Review Analysis: Customers rave about the “silky smooth power delivery” enabled by the Sine Wave controller and the “vibrant, easy-to-read” color display. Installation can be complex if not paired with a Bafang motor.

• Pros/Cons Analysis:

  • Pros: Industry-leading Sine Wave technology, exceptional display with numerous settings, high-quality construction, advanced diagnostics.

  • Cons: Higher price point, specialized connectors (not always universal), best utilized with Bafang mid-drive motors.

• Warranty/Applications: 2-year warranty when bought as part of a Bafang kit. Excellent for mid-to-high-end e bike builds demanding the best performance.

5. SOPMOD Thumb Throttle with Cruise Control Switch

A great alternative for riders who prefer thumb control over twist grip. Thumb throttles are often considered safer because they prevent accidental acceleration, which can happen with twist grips on uneven terrain. This unit addresses a common non-functionality issue: e bike throttle wiring problems are minimized due to its robust, weather-resistant build.

• Detailed Technical Specifications: Type: Thumb Lever; Material: High-strength ABS plastic; Feature: Integrated Cruise Control ON/OFF switch; Connector: JST/SM 3-Pin; Cable Length: 150cm.

• Customer Review Analysis: Reviewers frequently mention the comfort and ergonomic design. The integrated cruise control is a popular feature. Some users noted that the lever action can be a bit stiff initially.

• Pros/Cons Analysis:

  • Pros: Ergonomic and less fatiguing for long rides, built-in cruise control, better safety than full-twist models.

  • Cons: Requires more thumb strength to hold at full throttle, small switch button for cruise control.

• Warranty/Applications: 9-month manufacturer warranty. Suitable for all e bikes where the rider prefers a thumb accelerator, especially those focused on long-distance commuting.

6. Grinfineon Controller (High-End Customizable Replacement)

The Grinfineon is a highly respected, programmable controller often sold by companies like Grin Technologies. It’s the choice of professionals and enthusiasts who need complete control over their motor settings. If you’re dealing with a frustrating and tricky e bike throttle troubleshooting scenario, this controller provides the highest level of diagnostic capabilities.

• Detailed Technical Specifications: Programmable via PC/USB; Supports Field-Oriented Control (FOC); Current Limit: Adjustable up to 80A; Voltage Range: 24V-100V; Features: Regenerative Braking, Temperature Monitoring.

• Customer Review Analysis: Customers love the “unprecedented control over power delivery and efficiency.” However, many mention the steep learning curve for programming the controller, stressing that it’s “not plug-and-play.”

• Pros/Cons Analysis:

  • Pros: Fully customizable for peak performance, supports high voltage/current, advanced features like regen braking.

  • Cons: Very expensive, requires technical knowledge to program, not available on mainstream platforms like Amazon.

• Warranty/Applications: 2-year warranty. Best for high-performance builds, custom battery voltages, or riders needing fine-tuned motor control.

7. Amazon Basics 48V 1000W Standard Controller Kit

This generic, high-value kit is often used as a very basic, no-frills replacement for a failed controller or throttle. If you need a fast, affordable e bike throttle not working fix and don’t require advanced features, this is a solid, budget choice.

• Detailed Technical Specifications: Voltage: 48V fixed; Wattage: 1000W rated; Controller Type: Square Wave; Connections: Standard color-coded connections; Includes: Basic LED display and half-twist throttle.

• Customer Review Analysis: Reviewers highlight its “excellent price point” and “straightforward, simple installation.” The most common complaint is the “jerky” feel of the Square Wave power delivery compared to Sine Wave controllers.

• Pros/Cons Analysis:

  • Pros: Extremely affordable, widely compatible with standard 1000W hub motors, easy to install.

  • Cons: Uses older Square Wave technology (less smooth), basic display, less durable casing.

• Warranty/Applications: 90-day Amazon Basics warranty. Best for budget repairs, older e bike models, or as a temporary replacement to keep you riding.

🛒 Choose Your Fix: Click Here for Reliable Replacement Components! 🛠️

The components we’ve reviewed represent the industry standard for quality and performance. Don’t settle for sub-par parts that could leave you stranded again!

💬 Just one click – help others make better buying decisions too!😊

🔎 Step-by-Step e bike Throttle Not Working Fix: The Diagnostic Deep Dive

So, your e bike throttle not working has become a reality. Don’t panic. The process of finding the culprit involves a systematic, logical check of the entire power circuit, starting at the battery and ending at the motor. In my experience, 90% of issues are resolved by checking connections, brake cut-offs, and the low-voltage setting.

1. The Core Power Check: Battery and Display 🔋

Before anything else, we must verify that the e bike system has power. A non-functional e bike throttle is often a symptom of a much larger power failure.

• Check Battery Charge Level: Is the battery fully charged? Many controllers have a low-voltage cut-off designed to protect the battery. If the voltage drops below a certain point (e.g., 30V for a 36V battery), the controller will simply refuse to operate the motor, making it look like the throttle failed.

• Check the Display/Controller: Is the display turning on? If not, the issue is not the throttle; it’s the main power feed—the battery, the fuse, or the main power cable. If the display is on, check for any error codes (like the E07 on the VOYON kit’s KT-LCD3). These codes are your first and best diagnostic tool.

2. Brake Cut-Off Switch Inspection 🛑

This is arguably the most overlooked cause of an e bike throttle not working. Almost all e bikes are equipped with brake cut-off sensors (either mechanical switches or magnetic Hall sensors) that immediately cut motor power when the brake levers are pulled, a vital safety feature.

• How to Check: Simply pull the brake levers a couple of times. A sticky switch, even if the lever is released, can keep the motor power permanently disabled.

• The Fix: Wiggle the brake levers and ensure they fully snap back to the “off” position. If they don’t, you may need to adjust the cable tension or lubricate the brake cut-off switch mechanism. Disconnecting the brake sensor wire at the connector (temporarily, for testing) will confirm if the switch is the problem. If the throttle works with the sensor disconnected, you’ve found your issue! This is a very common scenario for electric bike throttle not working.

3. Throttle Connector and Wiring Integrity 🔌

The throttle connects to the controller via a thin cable, usually ending in a 3-pin JST or SM connector. This connection is prone to corrosion, strain, or accidental disconnection.

• Visual Inspection: Follow the throttle cable from the handle to the controller. Look for kinks, cuts, or damaged insulation. Pay special attention to the connector itself. Is it fully seated?

• Checking for Corrosion: Disconnect the throttle cable. Look inside the connector pins for any green or white residue, which indicates corrosion from moisture. Clean the contacts gently with electronic contact cleaner.

• Throttle Wire Colors: Standard Hall effect throttles use three wires:

  • Red: +5V supply from the controller.

  • Black/Blue/Green: Ground.

  • Green/Yellow/White: Signal wire (0.8V to 4.2V signal).

4. Voltage Test: Is the Controller Sending Power? ⚡

This step requires a multimeter, but it’s the definitive test for a troubleshooting e bike throttle. We need to see if the controller is correctly powering the throttle.

• Procedure:

  1. Turn on the e bike’s main power.

  2. Carefully use the multimeter probes to measure the voltage across the Red (+5V) and Black/Blue/Green (Ground) wires at the throttle connector (the one coming from the controller, not the throttle itself).

  3. Expected Reading: You should see a steady reading between 4.2V and 5.2V DC.

  4. Interpretation:

     • If you get 5V: The controller is working, and the problem is either the throttle unit or the signal wire. Proceed to Step 5.

     • If you get 0V: The controller is faulty, the controller’s internal fuse is blown, or the wiring harness leading to the controller is damaged. You may need a replacement controller, like the EBikeGo 24V-48V 1000W-1500W Controller for high-power systems.

5. Signal Test: Is the Throttle Sending a Signal? 📶

If the controller is supplying 5V, the next question is: Is the throttle sending a signal back?

• Procedure:

  1. Reconnect the throttle to the controller cable.

  2. With the power on, probe the Ground and the Signal wire (usually White, Green, or Yellow) at the controller end of the cable.

  3. Expected Reading (Throttle at rest): The reading should be low, typically between 0.8V and 1.5V DC.

  4. Expected Reading (Throttle fully engaged): Slowly twist or press the throttle to its maximum position. The voltage should smoothly increase to between 4.0V and 4.5V DC.

  5. Interpretation:

     • If the voltage sweeps from low to high: The throttle unit is working perfectly. The problem is likely the controller’s internal logic or the motor itself.

     • If the voltage remains stuck at 0V, 1.5V, or 5V regardless of throttle movement: The Hall sensor inside the throttle is defective. This is the e bike throttle not working fix you’ve been searching for: you need a replacement throttle, such as the Hall Effect Twist Throttle Grip by KT/Kunteng.

6. Cruise Control or Limiter Activation

Many controllers, especially modern ones like the Bafang DP C18.UART system, have safety features, cruise control, or “walk mode” (often 6 km/h) which can sometimes be accidentally activated, limiting or preventing throttle action.

• Check the Display Settings: Consult your e bike’s manual or controller documentation. Ensure no speed limiter (like an artificial 20 MPH cap) is set to a low value. On some generic displays, an accidental press of a button can lock the system, simulating a faulty e bike throttle.

7. Pedal Assist Sensor (PAS) Check

While the PAS and throttle are separate, a fault in a torque-sensing PAS system can sometimes override the throttle, causing confusion. For most cadence-based systems, a non-functional PAS will not affect the throttle. However, it’s worth a quick check. If you have a combined throttle/PAS failure, the issue is almost certainly the main controller or the battery.

8. The Controller Bypass Test (Advanced)

If all tests point to a bad controller, but you want absolute confirmation before buying an expensive replacement, you can perform a temporary “hotwire” test. (Note: This is an advanced test for experienced users only and should be done with extreme caution.)

• Principle: You are temporarily feeding the motor power directly to see if it spins, bypassing the controller’s logic and throttle signal processing.

• Alternative: The safer alternative is to test the motor phase wires. If the controller is good, it should output fluctuating AC voltage to the motor phase wires (usually Yellow, Green, Blue) when the throttle is applied. If you see no output voltage here, the controller is definitely the problem.

9. The Replacement: Securing Your Fix

If you’ve identified a faulty component (throttle or controller), the final step is to purchase a high-quality replacement. Ensure the new component matches your system’s voltage and motor type (Brushed or Brushless DC). For most hub motors, the kits we reviewed, like the VOYON 48V/36V 350W Controller Kit, provide a reliable and comprehensive solution. Always use waterproof connectors if possible and secure all wires neatly to prevent future issues from strain or weather.

🛠️ Components Comparison: Budget vs. Premium Solutions

When facing an e bike throttle not working fix, you’ll quickly discover a wide range of replacement part quality and price. Deciding between a budget component and a premium one is crucial. A premium part, while costing more upfront, offers greater longevity and superior performance.

The underlying mechanism of a Sine Wave controller (found in premium systems like the Bafang) is far superior to the older Square Wave technology found in budget units. Sine Wave controllers regulate power to the motor windings in a much more fluid, sinusoidal pattern. This results in quieter operation, less vibration, and significantly improved energy efficiency—features that make the initial investment worth it for a smoother, long-lasting ride. When choosing a part for your e bike throttle not working solution, consider the value of a quiet and efficient motor.

💡 Benefits Comparison: Fixing vs. Replacing the Entire System

When you encounter an e bike throttle problem, you’re faced with a choice: try to fix the component or replace the entire system. Let’s analyze the benefits of each approach.

For a simple e bike throttle not working issue, fixing or replacing the throttle unit itself is almost always the best first step. It is the cheapest and easiest route to get back on the road. If, however, your e bike is older (5+ years) or you have chronic issues, a full system upgrade to a modern, programmable controller like the Grinfineon is an investment in long-term reliability and performance. This also solves the electric bike throttle not working issue once and for all with a completely new electronic core.

The Mechanism of Failure: Why Do Throttles Fail?

Throttle failures often come down to the internal Hall effect sensor, which relies on a magnetic field. Over time, the following factors cause issues:

1. Water Ingress: Water gets inside the throttle housing, causing corrosion on the sensitive Hall sensor chip or shorting the wires.

2. Cable Strain: The constant twisting motion near the handlebar entry point causes the wires to fatigue and break inside the insulation. This creates an intermittent connection, which is one of the most frustrating e bike throttle problems to diagnose.

3. Sensor Drift: The Hall sensor’s calibration drifts over time, so its output signal no longer correctly corresponds to the controller’s expected voltage range (0.8V to 4.5V). This results in an unresponsive or jerky throttle.

Understanding these failure points is key to preventing them in the future. For example, ensuring your replacement throttle, such as the SOPMOD Thumb Throttle, has robust, sealed cable entry points can significantly extend its lifespan.

⚙️ Advanced Troubleshooting: The Controller and Motor Connection

Let’s assume you’ve checked the throttle (Step 5) and confirmed it sends a healthy signal, yet your motor remains silent. This points directly to the controller, the “brain” of your e bike system. This is a critical point in the e bike throttle not working fix journey.

Controller Function and Failure

The controller takes the low-voltage signal from the throttle and translates it into high-power current pulses sent to the motor windings via the three main phase wires (Yellow, Green, Blue).

Common Controller Failures:

1. Blown MOSFETs: The power transistors (MOSFETs) inside the controller handle the high current. A short circuit, a surge, or excessive heat (a problem for large controllers like the EBikeGo without proper airflow) can cause these to fail. Symptoms include no motor engagement, a burning smell, or a constant error code on the display.

2. Logic Board Failure: The internal micro-processor that reads the throttle signal and coordinates the power can fail. In this case, the display will light up, the brake cut-offs will test fine, the throttle will send a signal, but the controller simply won’t output power.

If the controller is confirmed bad, replacing it is the only option. Always match the new controller’s voltage (e.g., 48V) and current rating (A) to your motor’s specifications. Using an under-rated controller on a powerful motor will lead to immediate failure.

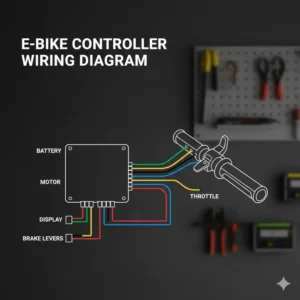

Dealing with e bike throttle wiring Issues

If your system uses universal color-coded wiring (e.g., the Amazon Basics kit), connecting a new throttle or controller is relatively straightforward. The key is the 3-pin connector.

• Red to Red (5V Power)

• Black to Black (Ground)

• White/Green/Yellow to White/Green/Yellow (Signal)

If your replacement part uses different connectors or wire colors, you must use the multimeter test from Step 4 and 5 to identify the wires on both sides before splicing them. This often requires careful soldering and heat-shrinking to maintain weatherproofing. I strongly recommend that if you are not comfortable with wiring, take the system to a professional, as an incorrect connection can permanently damage a new component.

📚 Further Reading:

• Learn about Hall Effect Sensors (University-level explanation): https://en.wikipedia.org/wiki/Hall_effect_sensor

• Guidelines for e bike Component Safety (CPSC): https://www.cpsc.gov/ (search for e bike safety)

• Basic e bike Battery Care for Longevity (Industry Blog): https://electricbikereport.com/ (look for battery guides)

✨ Your Next Adventure Awaits! Click Here to Find Your Perfect E Bike Part! 🚴‍♀️

Browse the top-rated controllers and throttles to ensure your next ride is smooth and worry-free. Get the power you need, today!

✅ Conclusion: Powering Up Your Ride

Dealing with an e bike throttle not working issue can be overwhelming, but by following a logical, systematic diagnostic approach, you can pinpoint the problem and secure a successful e bike throttle not working fix. Remember, the vast majority of problems are simple: a loose wire, a stuck brake cut-off, or a failed Hall sensor. The key is to start with the simple checks before moving to the advanced, multimeter-required diagnostics.

If you find yourself needing a replacement, choosing a high-quality component like the VOYON or EBikeGo kits, or a precision throttle like the Hall Effect Twist Throttle Grip by KT/Kunteng, will save you time and frustration in the long run. Don’t let a small electronic hiccup keep you from enjoying the freedom of your e bike. Get back out there and ride!
